Spring Tooth Harrow Cart

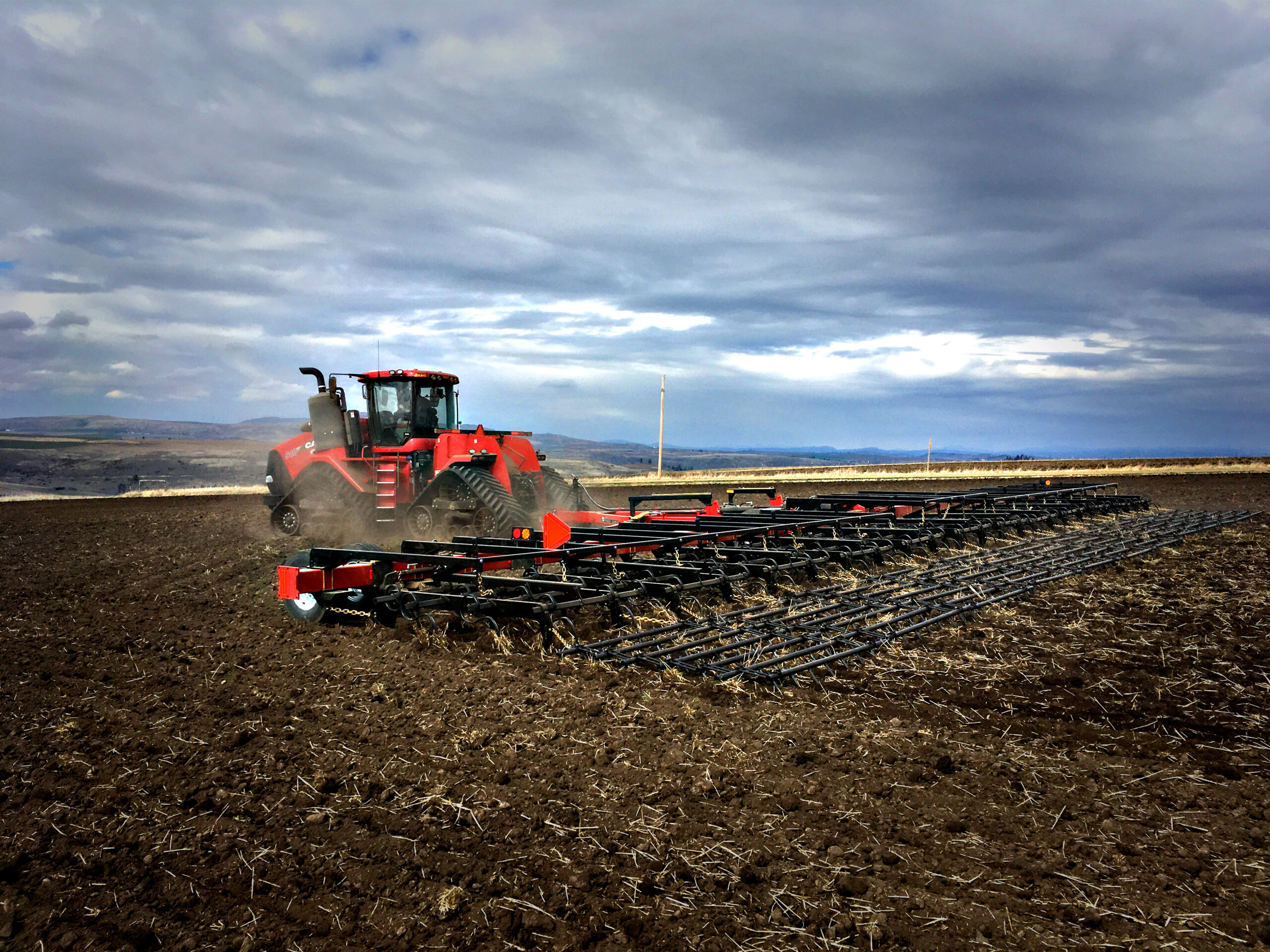

The Hillco STH1010 is an excellent tool for seed bed preparation, leaving a smooth finish and allowing the operator to cover more acres in less time.
Hillco Harrow Cart

Model STH1010

The Hillco STH1010, available in 60’ and 72’ widths, is an excellent tool for seed bed preparation, leaving a smooth finish and allowing the operator to cover more acres in less time.
Parts Book
STH1010 Sizes
IMG_5316 edited bw wide

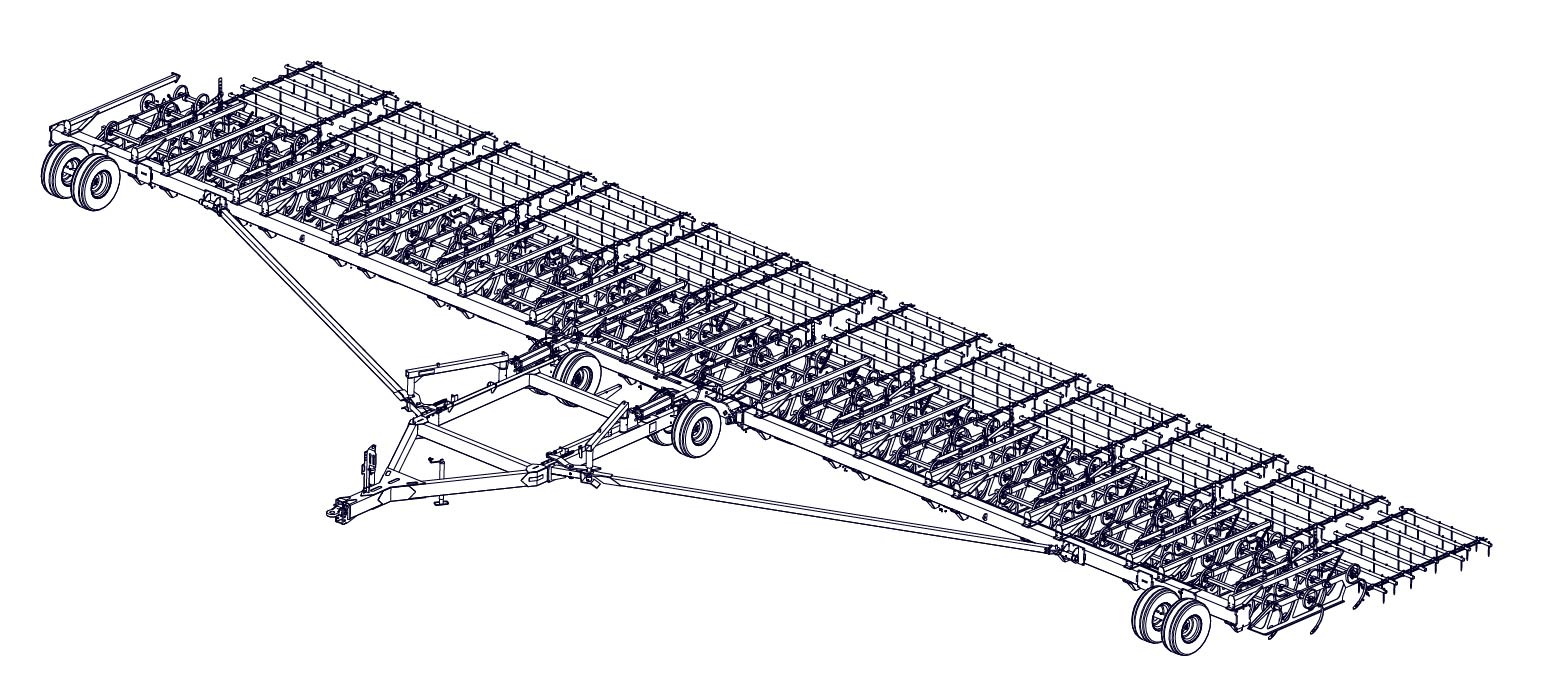

Frame Widths

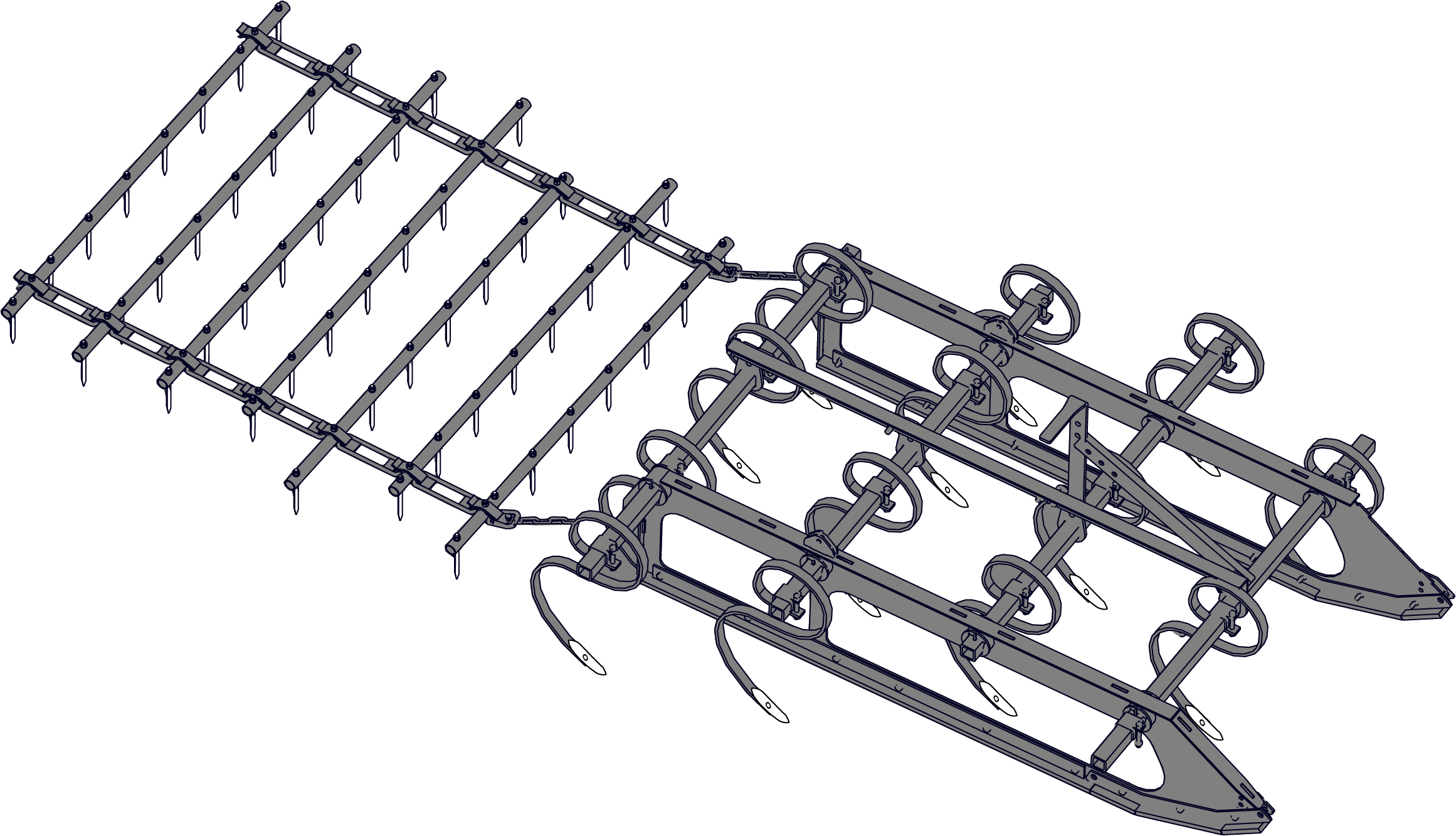

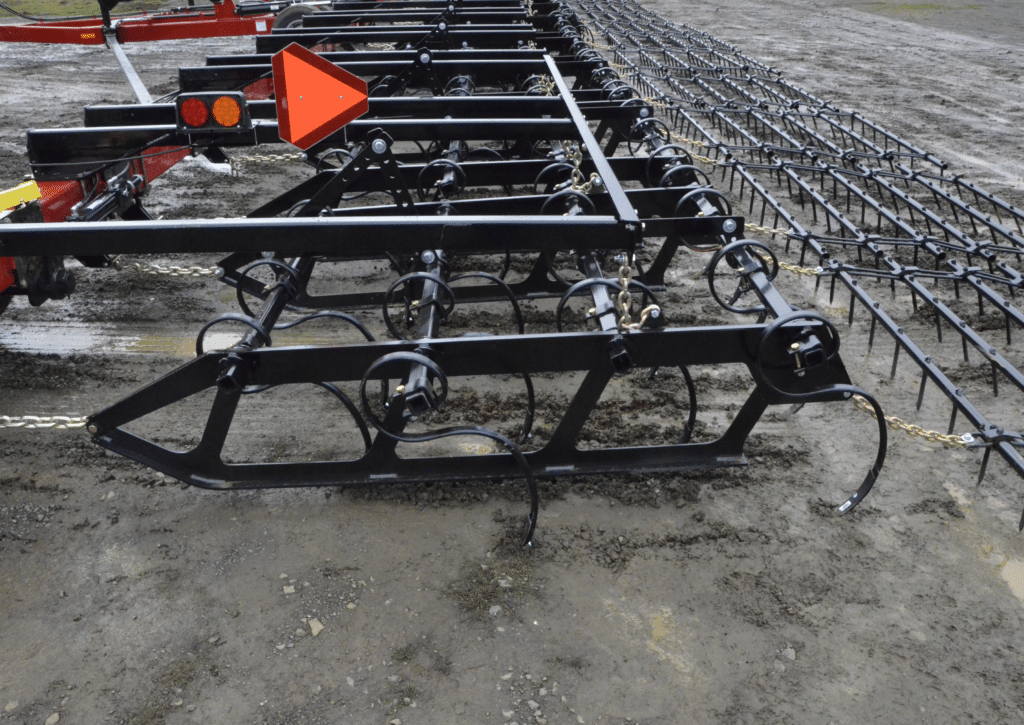

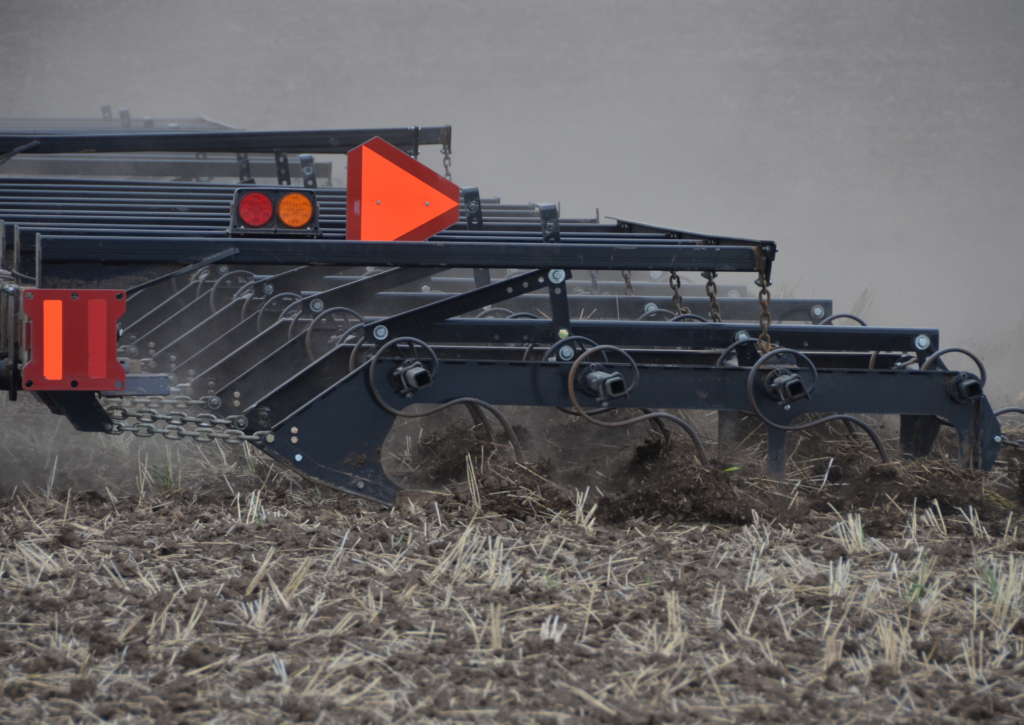

Spring Tooth Harrow Carts

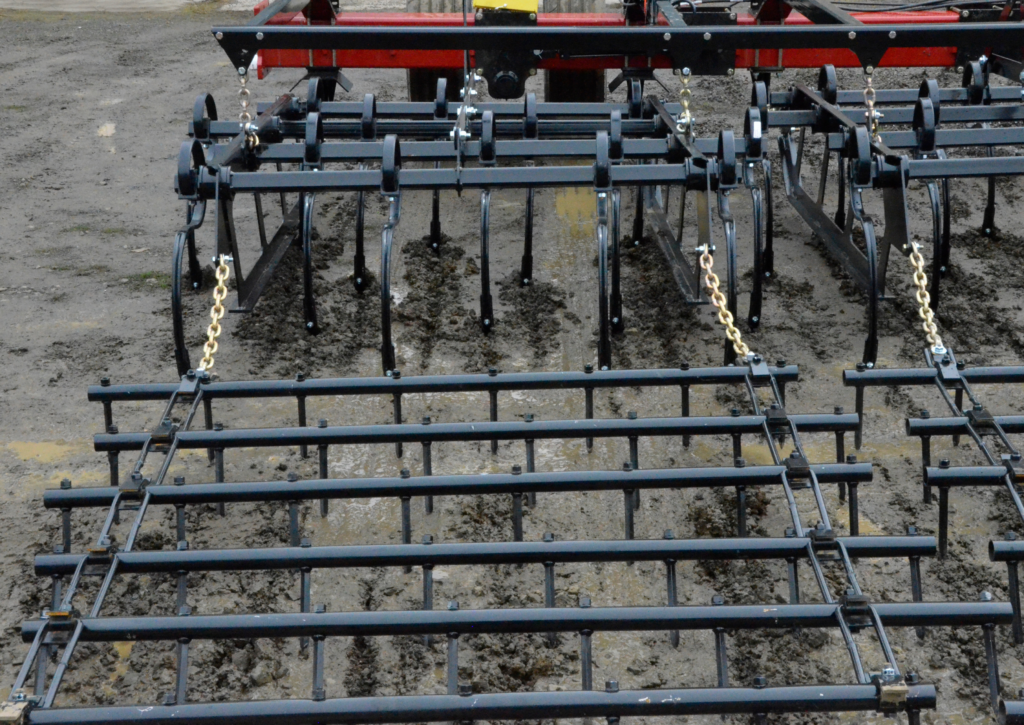

Manufactured with replaceable spikes made from a durable high carbon metal which reduces breaking and bending and provides long lasting wear.
Harrow section pipes are made from a high carbon steel which reduces bending when coming in contact with rocks.
All harrow sections are uniform in size (6 feet).

60'

Standard single wheels on center frame with optional Dual Center Wheels Optional tire upgrade from 11L-15 ribbed tires to Firestone IF280/70-15

72'

Standard Dual Center Wheels Optional tire upgrade from 11L-15 ribbed tires to Firestone IF280/70-15
