Harrow Carts

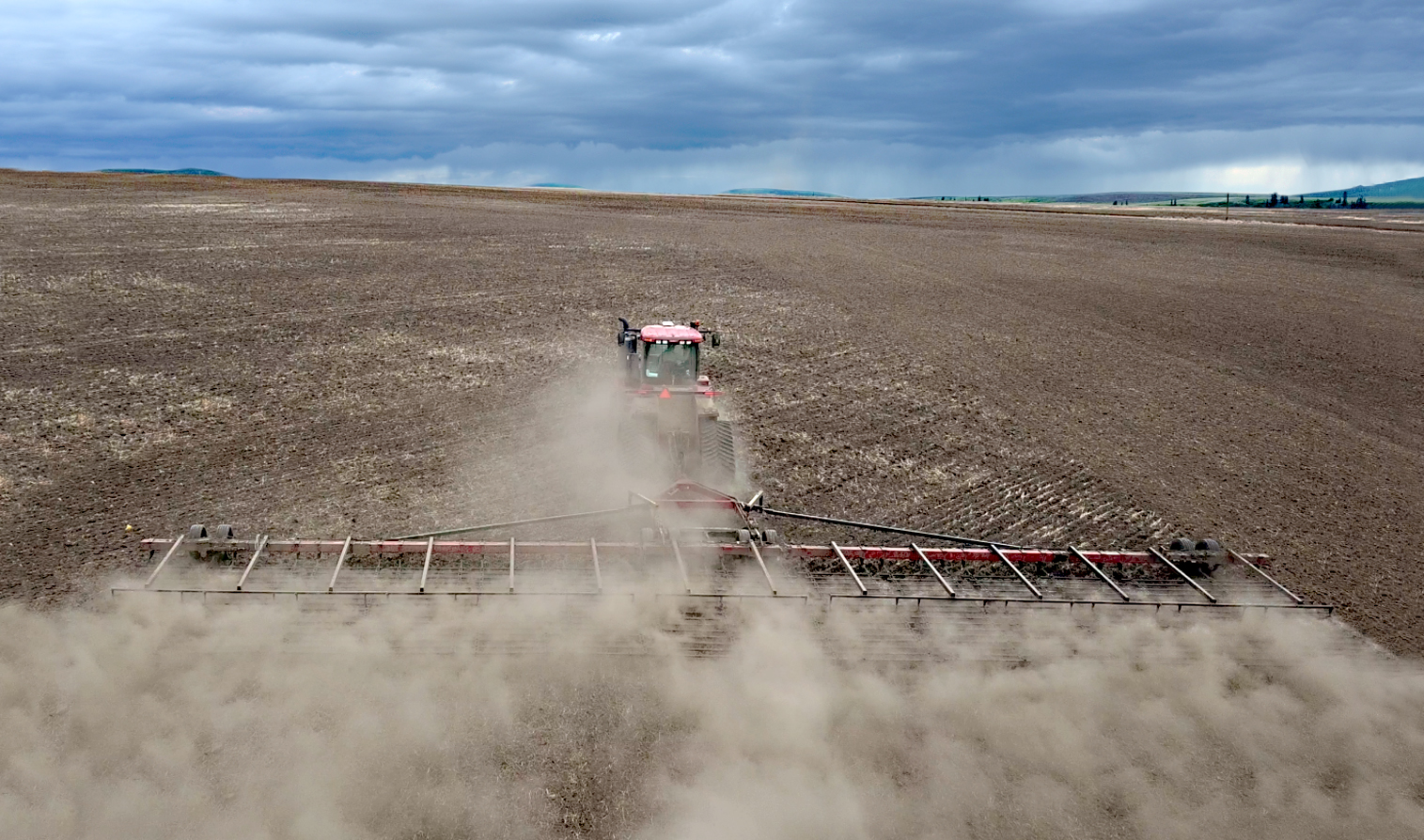

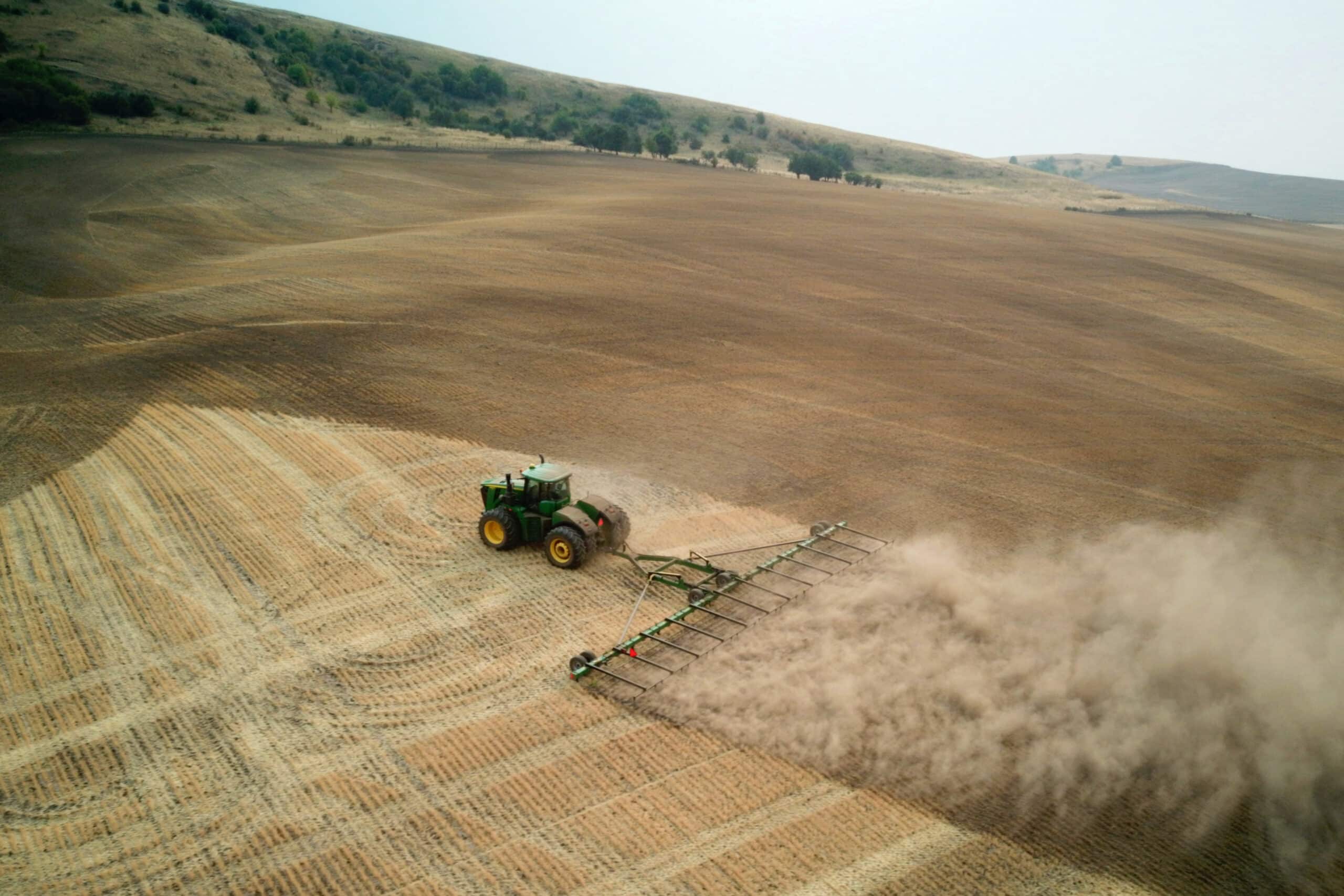

The Hillco HC1010 features 16 bars of flexible harrow that level fields, incorporate chemicals, and evenly size and spread residue. It is available in 48′, 60′, 72′, and 84′ widths.

Hillco Harrow Carts

Model HC1010

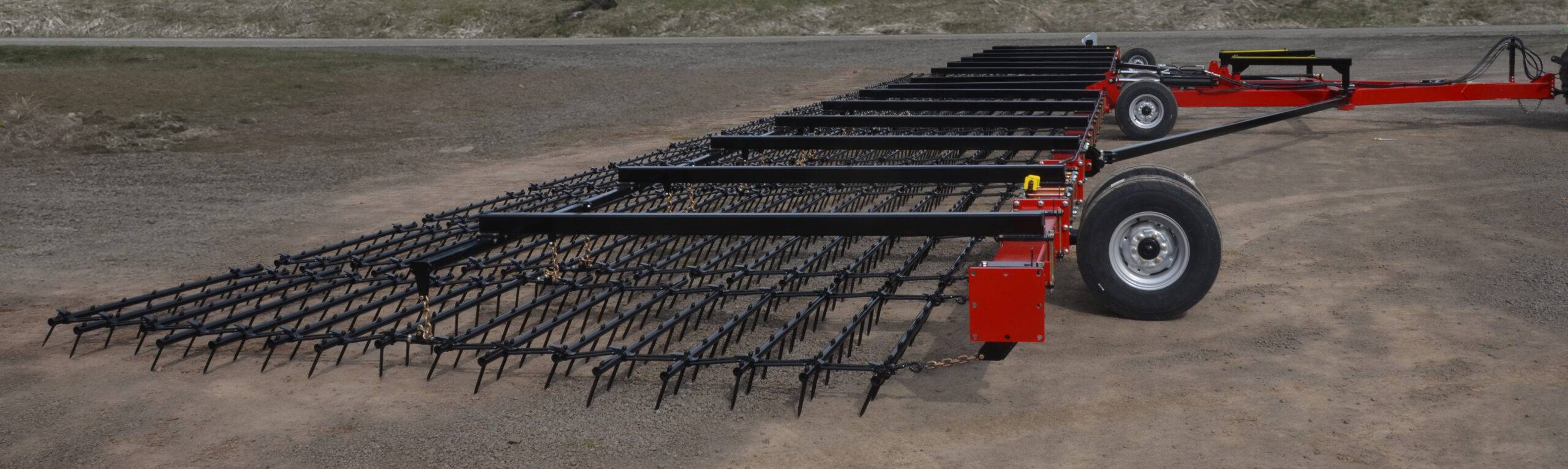

The Hillco HC1010 features 16 bars of flexible harrow that level fields, incorporate chemicals, and evenly size and spread residue.

Parts Book

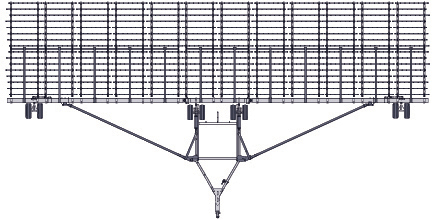

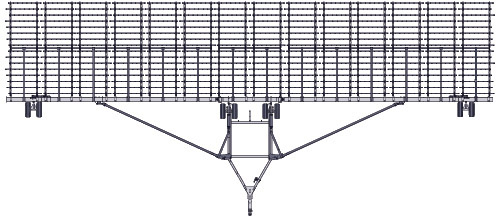

Frame Widths

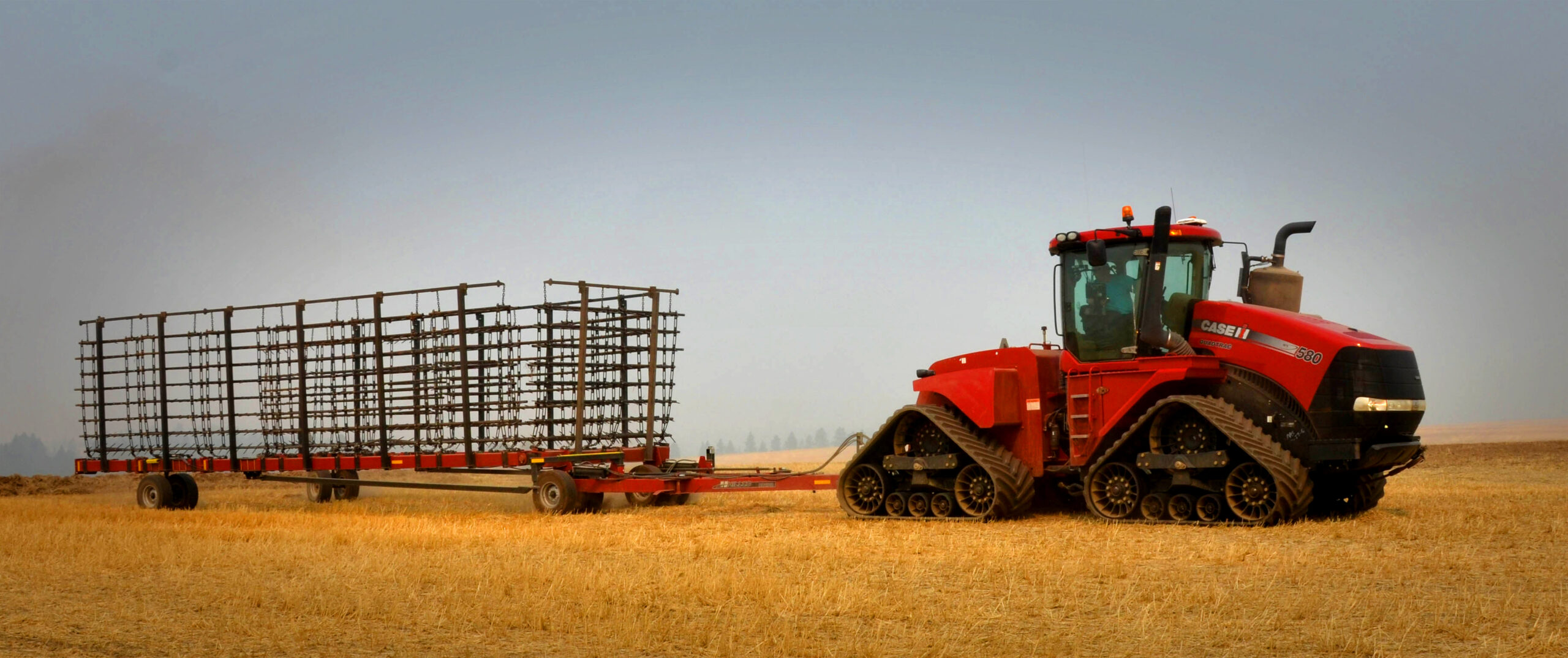

DSC_6149 edited Harrow
Frame Widths

Harrow Carts

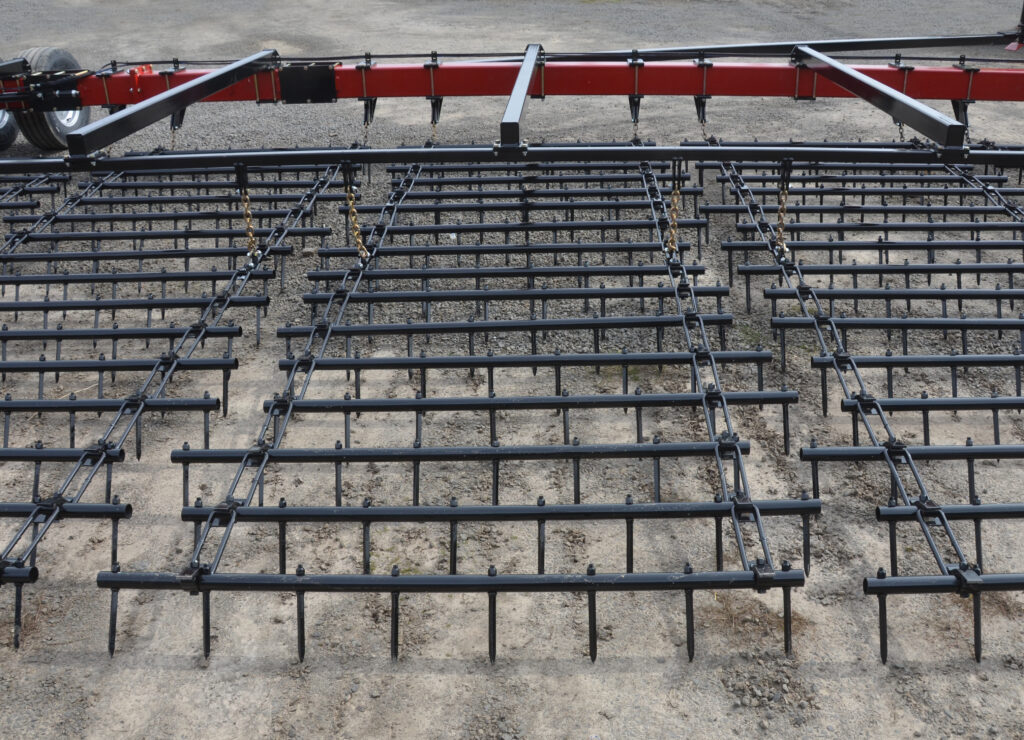

Manufactured with replaceable spikes made from durable high-carbon metal, reducing breakage and bending while ensuring long-lasting wear.

Harrow section pipes are constructed from high-carbon steel, minimizing bending upon contact with rocks.

All harrow sections are uniformly sized at 6 feet.

48'

60'

72'

84'

Learn More
Experience our Leveling Advantage

Connect with us

Subscribe To Our Newsletter
Shopping Cart
Scroll to Top

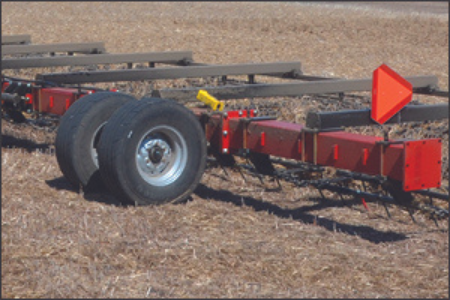

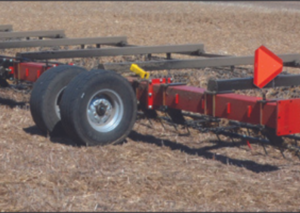

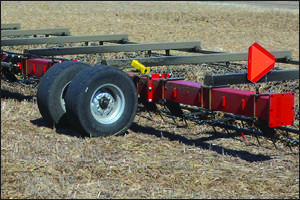

Wheels and Tires

Dual pivoting wing wheels provide heavy load carrying capacity in transport and help with flotation in the field position. Wing wheels are in-board, preventing the wheels from going over a bank when harrowing at the edge of a field and protecting the wheels from fences or trees. Standard tires are 280/70-15 which has a heavier load and speed rating and provides better flotation vs tradistional 11L-15 implement tires.

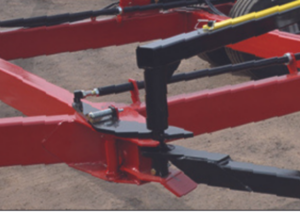

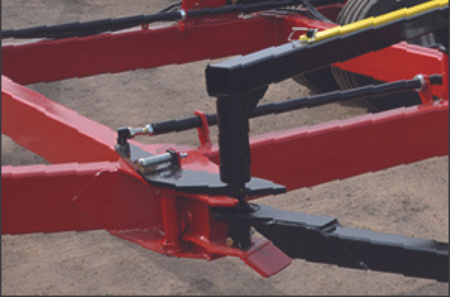

Pull Arms & Latches

Spring loaded push rods lock the latching mechanism when the harrow is folded down. The latches are released when the harrow is folded up. Weight of pull arm is supported by a latching guide when in the field position. This guide also helps the pull arms easily align with the latch.

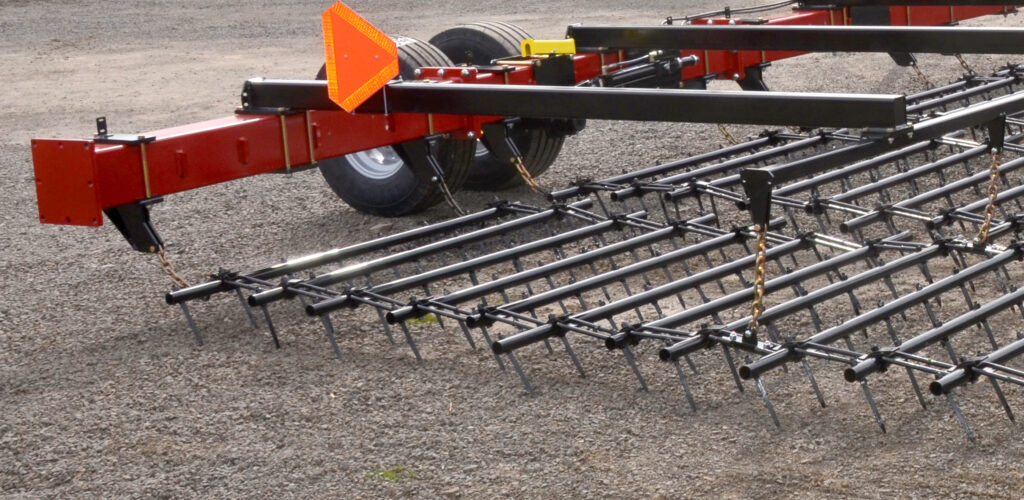

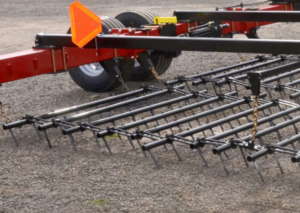

Harrow Pulls

Harrow pulls are angled and built out of heavy 3/8” iron to prevent damage if they come in contact with rocks or the ground.

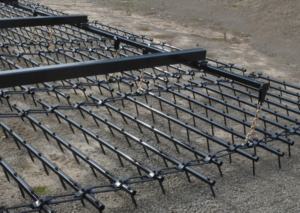

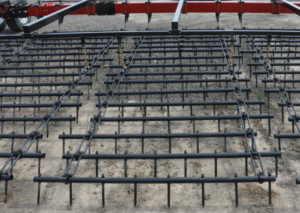

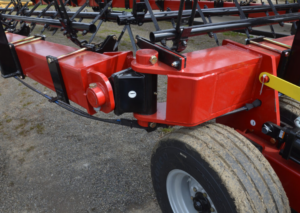

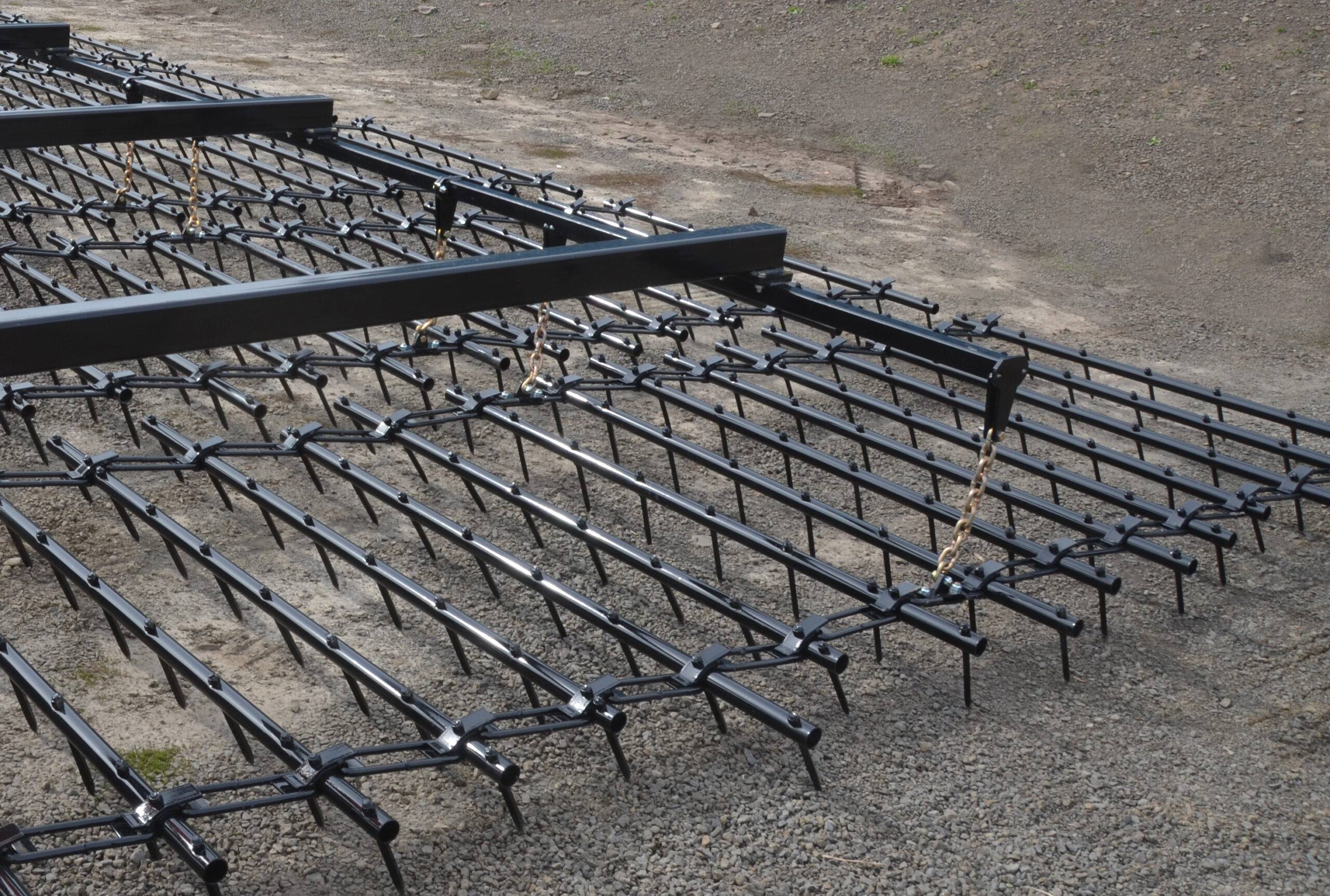

Harrow Hangers

Manufactured with replaceable spikes made from a durable high carbon metal which reduces breaking and bending and provides long lasting wear. Harrow section pipes are made from a high carbon steel which reduces bending when coming in contact with rocks. All harrow sections are uniform in size (6 feet).

Harrow Hangers

Manufactured with replaceable spikes made from a durable high carbon metal which reduces breaking and bending and provides long lasting wear. Harrow section pipes are made from a high carbon steel which reduces bending when coming in contact with rocks. All harrow sections are uniform in size (6 feet).
